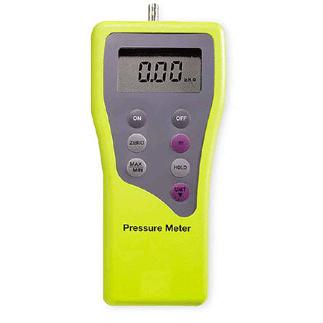

| TP610 Single input digital manometer |
|
|
|
|
 | |
| Replace messy U-tubes and expensive pressure gauges with digital manometers. |
| Replace messy U-tubes (water column manometers) and expensive pressure gauges with digital manometers. |
| |
|
Features |
- Auto Power Off after 40 minutes
- Three-year limited warranty
|
| |
|
Applications |
- Adjusting appliance regulators
- Setting delivery pressures
- Leakage "shut-in" test
- Regulator adjustments for pressure and lock-up tests
- Test for leaks in low-pressure gas systems
- Isolate difficult pressure problems on natural gas and propane systems
- Test pressure switch operation on a 2-stage gas furnace in both positive and negative pressures
- Static pressures in air ducts for air balancing
- Check air filters by measuring pressure drop
|
| | | SPECIFICATIONS
| TP610 |
single input and single unit of measure (inH2O) |
| TP615 |
single input and 7 selectable units of measure |
| TP620 |
dual input, differential and single unit of measure (inH2O) |
| TP625 |
Dual input, differential, and 7 selectable units of measure |
| TP615 & TP625 |
seven selectable units of measure: mmHg, inHg, kPa, mBar, PSI, inH2O, and mmH2O |
| All units are auto ranging from –15 to +48 inches of water |
| Accuracy |
+/- 0.5% of reading + 5 digits |
| Over Pressure |
500 mBar |
| Power Supply |
9 volt |
| Relative Humidity |
0 to 80% (0 to 40 C) |
| Operating Temperature |
0 to +40 C |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| TP610 |
|
610 |
|
Single input digital manometer in inH2O |
|
Yes |
|
365,040 |
| TP615 |
|
615 |
|
Single input digital manometer in seven selectable units of measure |
|
Yes |
|
408,240
|
| (mmHg, inHg, kPa, mBar, PSI, inH2O, and mmh2O) |
| TP620 |
|
620 |
|
Dual input digital manometer in inH2O |
|
Yes |
|
431,892 |
| TP625 |
|
625 |
|
Dual input digital manometer in seven selectable units of measure |
|
Yes |
|
539,892
|
| (mmHg, inHg, kPa, mBar, PSI, inH2O, and mmh2O) |
| TP901 |
|
A901 |
|
OPTIONAL Optional soft shoulder carrying case to TP610-TP625 FOR Single and Dual Input Digital Manometers |
|
Yes |
|
43,092
| | |
|
|
 | |
 |
|
 |
|
