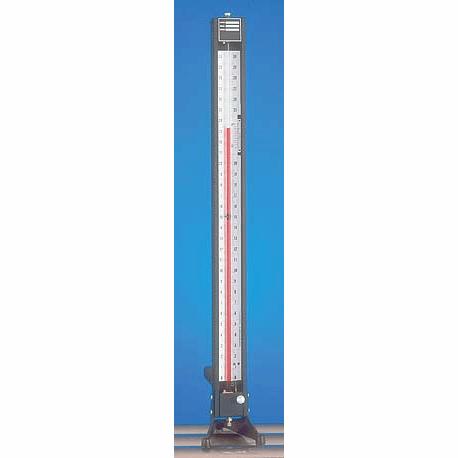

상품 상세보기 : Manometer - MR84170 Wall Mount Manometer 12"

Well Type Manometers are accurate and dependable as well as highly versatile for many applications.

Well Type Manometers are accurate and dependable as well as highly versatile for many applications. Provides fast, direct-readings of pressure, vacuum, differential, flow and liquid levels. Available as either single or multiple-tube models. No adding of distances above and below a zero line. All scales are graduated to correct for the drop in well level and are full width of the instrument. The selection chart below will help you choose the correct manometer for your application.

SPECIFICATIONS

Ranges (in inches)	12, 20, 30, 40 and 60
Wetted Parts	303 SS
Pressure Rating	30EBX25-250 psig (standard)
Pressure Rating	30EBX50-500 psig
Mounting Styles	Wall
	Table
	Flush Front
	Pipe
Standard Scales	A, B, G, H, I, MBAR, MB, MI, KPa
Special Features	Versatile, General Purpose Well Type Manometer. Flow, Liquid Level. Tube I.D.—.200"

STANDARD SCALES

Inches	Scale A	Scale B	Scale G	Scale H	Scale I
	Inches and tenths of manometer fluid	Inches of water pressure using mercury (dry basis)	Inches and tenths of water pressure using .827 Red Oil	Inches and tenths of water pressure using 1.75 Blue Fluid	Inches and fifths of water pressure using 2.95 No. 3 Red Fluid
	6	6	81.4	4.9	10.5	17.8
	10	10	135.7	8.2	17.5	29.6
	15	15	203.5	12.4	36.3	44.5
	20	20	271.4	16.5	35.0	59.3
	30	30	407.1	24.7	52.5	88.9
	40	40	542.8	33.0	70.0	118.6
	50	50	678.5	41.2	87.5	148.2
	60	60	814.2	49.5	105.0	177.9
	80	80	1085.6	66.0	140.0	237.2
	100	100	1357.0	82.5	175.0	296.5

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

MR84170

30EBX25 12"WM A

WALL MOUNT MANOMETER 12"

Yes

982,800

MR84171

30EBX25 20"WM A

WALL MOUNT MANOMETER 20"

Yes

1,069,200

MR84172

30EBX25 30"WM A

WALL MOUNT MANOMETER 30"

Yes

1,077,840

MR84174

30EBX25 40"WM A

WALL MOUNT MANOMETER 40"

Yes

1,263,600

MR84176

30EBX25 60"WM A

WALL MOUNT MANOMETER 60"

Yes

1,464,480

MR84179

30EBX25 12"TM A

TABLE MOUNT MANOMETER 12"

Yes

1,177,200

MR84180

30EBX25 20"TM A

TABLE MOUNT MANOMETER 20"

Yes

1,242,000

MR84181

30EBX25 30"TM A

TABLE MOUNT MANOMETER 30"

Yes

1,285,200

MR84183

30EBX25 40"TM A

TABLE MOUNT MANOMETER 40"

Yes

1,404,000

MR84185

30EBX25 60"TM A

TABLE MOUNT MANOMETER 60"

Yes

1,620,000

MR84145

923RO-1

OPTIONAL MANOMETER FLUID 0.827 SP. GR. FOR Ruggedized Well-Type Manometers

Yes

62,640

MR84146

924BB-1

OPTIONAL MANOMETER FLUID 1.75 SP. GR. FOR Ruggedized Well-Type Manometers

Yes

116,640

MR84148

924BA-1

OPTIONAL MANOMETER FLUID 2.95 SP. GR. FOR Ruggedized Well-Type Manometers

Yes

114,480
