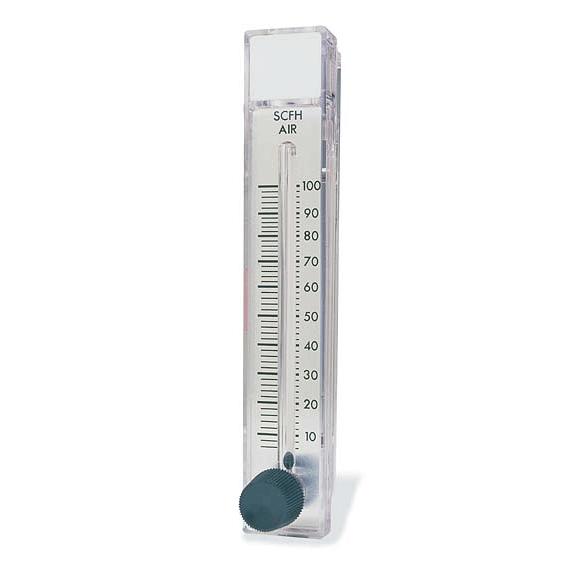

This line of direct reading precision flow meters incorporates many unique user features
This line of direct reading precision flow meters incorporates many unique user features at moderate cost. These low cost flow meters are ideal for general use.
Easy to read design – The direct reading scales eliminate troublesome conversions. The scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube. Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore. The float is highly visible against a white background.
Construction assures accuracy – All flow meter bodies are injection molded of tough, clear, shatter-proof polycarbonate plastic around a precision tapered pin. Critical internal diameter of the variable orifice tube is held within ±0.0004". The result is accurate and repeatable readings. The backbone into which pipe thread inserts are welded to absorb piping torque. Precision metering valves of brass are standard, stainless steel valves are available as an optional extra and permit precise flow adjustments. Vacuum application models are available with top mounted valves (please inquire). Series A models are accurate within ±4% of full scale reading: Series B within ±3%: large Series C within ±2%.
SPECIFICATIONS
Meter Body, Bezel and Tube
Polycarbonate
Wetted Metal Parts
Stainless steel (except for optional brass valves)
Floats
Stainless steel, Blk glass, Alum., K Monel
Float Stops
Polycarbonate
Pipe Connections
Model RMA, 1/8" model RMB, 1/4", model RMC, 1/2" NPT
"O" Rings
Neoprene and Buna N
Fittings
Stainless steel brazed to stainless steel backbone plate
Rivets
Stainless steel, set into slots
Scale
Brushed aluminum, clear epoxy coated
Knobs
ABS plastic
Pressure Rating
RMA 100 P.S.I., RMB 70 P.S.I., RMC 35 P.S.I. max.
Temperature Rating
To 130°F maximum
Accuracy
Model RMA, 4%; model RMB, 3%, Model RMC, 2% of full scale
All units supplied with a standard brass valve; See ordering information for optional stainless steel valves. Units without valve also available
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
DW900
RMC-101-BV
Flow Meter, 10" Scale, Series C, 5-50 SCFH (Air)
Yes
178,200
DW901
RMC-102-BV
Flow Meter, 10" Scale, Series C, 10-100 SCFH (Air)
Yes
178,200
DW902
RMC-103-BV
Flow Meter, 10" Scale, Series C, 20-200 SCFH (Air)
Yes
178,200
DW903
RMC-104-BV
Flow Meter, 10" Scale, Series C, 40-400 SCFH (Air)
Yes
178,200
DW904
RMC-105-BV
Flow Meter, 10" Scale, Series C, 60-600 SCFH (Air)
Yes
178,200
DW905
RMC-106-BV
Flow Meter, 10" Scale, Series C, 100-1000 SCFH (Air)
Yes
178,200
DW907
RMC-108-BV
Flow Meter, 10" Scale, Series C, 180-1800 SCFH (Air)
Yes
178,200
DW908
RMC-121-BV
Flow Meter, 10" Scale, Series C, 1-10 SCFM (Air)
Yes
178,200
DW909
RMC-122-BV
Flow Meter, 10" Scale, Series C, 2-20 SCFM (Air)
Yes
178,200
DW910
RMC-123-BV
Flow Meter, 10" Scale, Series C, 3-30 SCFM (Air)
Yes
178,200
DW911
RMC-134-BV
Flow Meter, 10" Scale, Series C, 2-20 GPH (Water)
Yes
178,200
DW912
RMC-135-BV
Flow Meter, 10" Scale, Series C, 8-90 GPH (Water)
Yes
178,200
DW913
RMC-141-BV
Flow Meter, 10" Scale, Series C, .1-1 GPH (Water)
Yes
178,200
DW914
RMC-142-BV
Flow Meter, 10" Scale, Series C, .2-2.2 GPH (Water)
Yes
178,200
DW917
RMC-145-BV
Flow Meter, 10" Scale, Series C, 1.2-10 GPH (Water)
Yes
178,200
DW918
RMB-49-BV
Flow Meter, 5" Scale, Series B, .5-5 SCFH (Air)
Yes
88,020
DW919
RMB-50-BV
Flow Meter, 5" Scale, Series B, 1-10 SCFH (Air)
Yes
88,020
DW920
RMB-51-BV
Flow Meter, 5" Scale, Series B, 2-20 SCFH (Air)
Yes
88,020
DW921
RMB-52-BV
Flow Meter, 5" Scale, Series B, 5-50 SCFH (Air)
Yes
88,020
DW922
RMB-53-BV
Flow Meter, 5" Scale, Series B, 10-100 SCFH (Air)
Yes
88,020
DW923
RMB-54-BV
Flow Meter, 5" Scale, Series B, 20-200 SCFH (Air)
Yes
88,020
DW924
RMB-55-BV
Flow Meter, 5" Scale, Series B, 40-400 SCFH (Air)
Yes
88,020
DW925
RMB-56-BV
Flow Meter, 5" Scale, Series B, 50-500 SCFH (Air)
Yes
88,020
DW926
RMB-57-BV
Flow Meter, 5" Scale, Series B, 60-600 SCFH (Air)
Yes
88,020
DW927
RMB-82-BV
Flow Meter, 5" Scale, Series B, 1-12 GPH (Water)
Yes
88,020
DW928
RMB-83-BV
Flow Meter, 5" Scale, Series B, 1-20 GPH (Water)
Yes
88,020
DW929
RMB-84-BV
Flow Meter, 5" Scale, Series B, 4-40 GPH (Water)
Yes
88,020
DW930
RMB-85-BV
Flow Meter, 5" Scale, Series B, 10-100 GPH (Water)
Yes
88,020
DW931
RMA-1-BV
Flow Meter, 2" Scale, Series A, .05-0.5 SCFH (Air)
Yes
61,020
DW932
RMA-2-BV
Flow Meter, 2" Scale, Series A, .1-1 SCFH (Air)
Yes
61,020
DW933
RMA-3-BV
Flow Meter, 2" Scale, Series A, .2-2 SCFH (Air)
Yes
61,020
DW934
RMA-4-BV
Flow Meter, 2" Scale, Series A, .5-5 SCFH (Air)
Yes
61,020
DW935
RMA-5-BV
Flow Meter, 2" Scale, Series A, 1-10 SCFH (Air)
Yes
61,020
DW936
RMA-6-BV
Flow Meter, 2" Scale, Series A, 2-20 SCFH (Air)
Yes
61,020
DW937
RMA-7-BV
Flow Meter, 2" Scale, Series A, 5-50 SCFH (Air)
Yes
61,020
DW938
RMA-8-BV
Flow Meter, 2" Scale, Series A, 10-100 SCFH (Air)
Yes
61,020
DW941
RMA-151-BV
Flow Meter, 2" Scale, Series A, 5-50 CC Air/Min.
Yes
83,160
DW942
RMA-150-BV
Flow Meter, 2" Scale, Series A 10-100 CC Air/Min.
Yes
61,020
DW943
RMA-11-BV
Flow Meter, 2" Scale, Series A 30-240 CC Air/Min.
Yes
61,020
DW945
RMA-13-BV
Flow Meter, 2" Scale, Series A 100-1000 CC Air/Min.
Yes
61,020
DW946
RMA-14-BV
Flow Meter, 2" Scale, Series A 200-2500 CC Air/Min.
Yes
61,020
DW947
RMA-26-BV
Flow Meter, 2" Scale, Series A .5-5 LPM Air
Yes
61,020
DW948
RMA-21-BV
Flow Meter, 2" Scale, Series A 1-10 LPM Air
Yes
61,020
DW949
RMA-22-BV
Flow Meter, 2" Scale, Series A 2-25 LPM Air
Yes
61,020
DW950
RMA-23-BV
Flow Meter, 2" Scale, Series A 5-50 LPM Air
Yes
61,020
DW951
RMA-23-BV
Flow Meter, 2" Scale, Series A 10-100 LPM Air
Yes
61,020
DW954
RMA-34-BV
Flow Meter, 2" Scale, Series A 20-300 LPM Air
Yes
61,020
DW955
RMA-42-BV
Flow Meter, 2" Scale, Series A 1-11 GPH (Water)
Yes
61,020
DW958
RMA-45-BV
Flow Meter, 2" Scale, Series A 5-50 GPH (Water)
Yes
61,020
