AA6424 Aluminum, Mass flow controller
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:AA6424
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

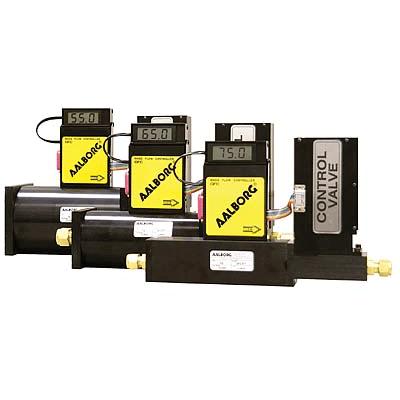

Self contained GFC mass flow controllers are designed to read flow rates of gases.
Self contained GFC mass flow controllers are designed to read flow rates of gases. The rugged design coupled with instrumentation grade accuracy provides versatile and economical means of flow control.

GFC Mass Flow Controllers combine an advanced straight sensor tube with a restrictor flow element to provide high accuracy and repeatability. Gas flow rates are unaffected by temperature and pressure variations within limitations.

The built in valve allows the flow to be set to any desired flow rate within the range of the particular model. The valve is normally closed as a safety feature to ensure that gas flow is shut off in case of a power outage. Set points are controlled either locally or remotely.

GFC Mass Flow Controllers include a detachable 31/2"-digit LCD that can be tilted up to 900 for easy reading.

Optional totalizer to display total accumulated flow. Flowmeters come with a certificate of calibration traceable to NIST standards.


Features
  • Flow Rates Up to 1000 L/min
  • NIST Traceable Certification
  • Rigid Metallic Construction
  • Optional Totalizer


CAT NO. MODEL DEscRIPTION AVAIL PRICE
AA6424   ¡¡ ¡¡ Aluminum, Mass flow controller, 0-200 L/min   Yes   2,667,600
AA6426   ¡¡ ¡¡ Aluminum, Mass flow controller, 0-500 L/min   Yes   3,088,800
AA6428   ¡¡ ¡¡ Aluminum, Mass flow controller, 0-1000 L/min   Yes   Call 031-777-1588
AA6425   ¡¡ ¡¡ Stainless, Mass flow controller, 0-200 L/min   Yes   4,104,000
AA6427   ¡¡ ¡¡ Stainless, Mass flow controller, 0-500 L/min   Yes   4,752,000
AA6429   ¡¡ ¡¡ Stainless, Mass flow controller, 0-1000 L/min   Yes   6,048,000
