The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection

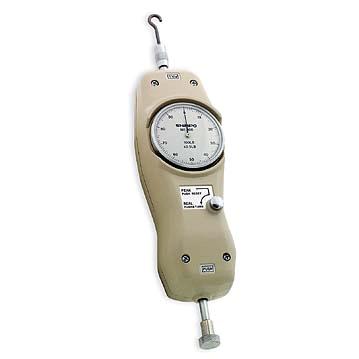

The MF series mechanical force gauge is ideal for measuring push/pull forces in quality control/material testing, manufacturing assembly, maintenance and inspection. No batteries are required - the calibration is accomplished by a set of precisely matched springs which are overload protected to 165 pounds! The MF mechanical force gauge can be used anywhere without "recharging."
The peak mode features an easy push-button reset. This is especially helpful for doing repetitive testing in an assembly line or quality control lab. The real time mode allows you to see force changes as they occur. Since the gauge is mechanical, the response time is immediate.
The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection. All gauges come complete with carrying case and attachments. Ergonomically designed for handheld use, they can also be used with the optional handle (great for loads over 15 lbs) or mounted to a test stand or fixture.
Features
Rugged and economical
Measure tension and compression forces
Real time mode shows force changes as they occur
PEAK mode captures peak forces
No dead batteries to worry about
Easily mounts to a test stand
Accurate to ±0.2% of full scale
Optional handle assembly
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
WG513101
MF-2
Mechanical Force Gauge, Capacity: 2 lb, Dial Graduation: 0.01 lb
Yes
1,026,000
WG513102
MF-5
Mechanical Force Gauge, Capacity: 5 lb, Dial Graduation: 0.025 lb
Yes
1,026,000
WG513103
MF-10
Mechanical Force Gauge, Capacity: 10 lb, Dial Graduation: 0.05 lb
Yes
1,026,000
WG513104
MF-20
Mechanical Force Gauge, Capacity: 20 lb, Dial Graduation: 0.1 lb
Yes
1,026,000
WG513105
MF-30
Mechanical Force Gauge, Capacity: 30 lb, Dial Graduation: 0.2 lb
Yes
1,026,000
WG513106
MF-50
Mechanical Force Gauge, Capacity: 50 lb, Dial Graduation: 0.25 lb
Yes
1,026,000
WG513107
MF-100
Mechanical Force Gauge, Capacity: 100 lb, Dial Graduation: 0.5 lb
Yes
1,026,000
SHMFP01
MFP
OPTIONAL OPTIONAL HANDLE FOR Mechanical Force Gauges
Yes
216,000
