| T/P/N 600 Built-In Sensor |
|
|
|
|
 | |
| T/P/N 600 Built-In Sensor with Connecting Head Type Operative Range: for immersion measurements also at high temperatures |

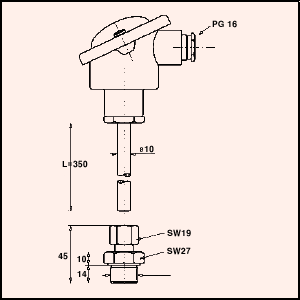

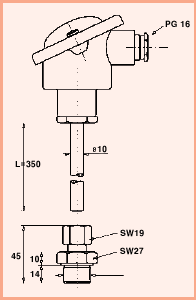

T/P/N 600 Built-In Sensor with Connecting Head Type
 |
Operative Range:
for immersion measurements
also at high temperatures
Accessories:
| ZT9600ME |
Gauge slide for T 600 (spare) |
| ZP9600ME |
Gauge slide for P 600 (spare) |
| ZN9600ME |
Gauge slide for N 600 (spare) |
Options:
| SB2290L |
Special measuring range |
| FPA4371 |
Thermal conductivity probe | |
| Technical Data: |
| Measuring tip: |
replaceable |
| Fitting length: |
350mm |
Types:
(incl. movable steel screw connection G1/2”): |
| FT0600 |
NiCr-Ni (K), Tmax = 800°C |
| FP0600 |
Pt100, Tmax = 350°C |
| FN0600 |
Ntc, Tmax = 100°C | |
Accuracy:
| Device special measuring range λ: |
0.025 … 0.250W/m · K |
| Resolution: |
|
| Thermal conductivity probe FPA4371: |
| Dimensions: |
L = 200mm, Ø = 1.6mm |
| Measuring tip: |
Pt100 insertion sensor,
heatable, centrically
pointed |
| Probe covering: |
min. 10mm, insertion
depth min. 60mm |
| Cable: |
1.5m PVC |
| | |
|
|
 | |
 |
|
 |
|
