Waterproof design with clear dome hood as sealing for the diffusor.

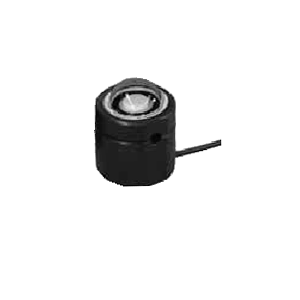

FLA603PS4 Photosynthesis
Probe Head
● High quality measuring
head for direct evaluation of the
Photosynthetical Active Radiation (PAR) in the wavelength
range from 400 to 700nm.
● Measurement
geometries with cosine diffusor instead of simple diffusing screen for highest
quality requirements.
● Waterproof
design with clear dome hood as sealing for the diffusor.
● Three measuring
channels with different sensitivity.
Technical Data:
Measuring range:
0.0002 to 5,0 μmol/(m²·s)
Resolution:
0.0002 μmol/(m²·s)
Sensitivity:
approx. 100 nA/(μmol/m²·s)
Spectral sensitivity:
400 to 700nm
Max. cos deviation:
< 5%
Cos diffusor:
diameter 15mm
Dimensions:
diameter 37mm,
height 35mm
Type:
height 50mm Photosynthesis probe head
with ALMEMO® connecting cable 2m long incl. factory calibration certificate
with calibration in μmol/(m²·s)
FLA603PS4
for the measurement of photosynthetical
active intensity of irradiation
FLA603PS4WG
in a waterproof design with
clear dome hood (see illustr.)
