Compact sensor for mobile and stationary applications. High display resolution (1 ppm)

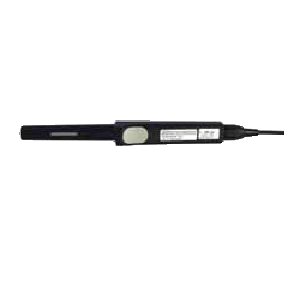

FYA600CO2H
Carbon Dioxide Sensor, hand-held Type


¡Ü Compact sensor for mobile and stationary applications
¡Ü High display resolution (1 ppm)

¢Ñ Operation with the device in SLEEP mode is not possible!
When operating more than one CO2 probe on a single
ALMEMO¢ç device, these CO2 probes will need their own
external power supply ! On request we can offer a wide
variety of power supply options to suit your particular
measuring setup.


Types:
FYA600CO2H Carbon dioxide sensor, hand-held including connecting cable, 1.5 m long for measuring CO2 in air

Technical Data:
Sensor: 2-channel infra-red absorption principle
Measuring range: 0 to10 000 ppm (0 to 1 vol% CO2 )
Accuracy:
(under nominal conditions)
0 to 5000 ppm¡¾
(50 ppm+ 2% of measured value)
5000 to 10000 ppm
¡¾(100 ppm +3% of meas. value)
Resolution: 1 ppm or 0,0001 vol %
Nominal conditions: 22¡ÆC ¡¾2 ¡ÆC / 50 % rF ¡¾ 10 % rF
Ambient temperaturer: 0 to +50 ¡ÆC
Storage temperature: -20 to +50 ¡ÆC
Ambient atmospheric humidity: 0 to 90 % rF (non-condensing)
Temperature coefficient 0,4% of measured value / ¡ÆC
Voltage supply: 6.5 to 12 V DC,
from the ALMEMO¢ç device
Operation with mains supply unit
recommended
Current consumption: effective approx. 40 mA;
max. approx. 80 mA
Connection cable: 1,5 m
