Applications: For measurement, control and warnings in garages, for monitoring the air quality

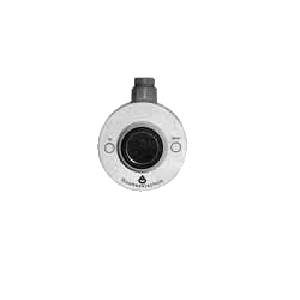

FYA600CO Carbon
Monoxide Probe Type
● Applications:
For measurement, control and warnings in garages, for
monitoring the air quality with respect to the maximum
allowable concentration at work places (MAC value, e.g. in laboratories
and engine test benches), for monitoring the outside air or protected air
systems in house shelters or large shelter buildings.
● Particularly
suitable for long-term measurements of the carbon monoxide concentration
in air, in a range from 0 … 150ppm to 0 … 5vol%.
Type:
FYA600CO
Carbon monoxide sensor including connecting
cable 1.5m long for CO measurements in air
Technical Data:
Gas:
CO
Measuring principle:
electrochemical reaction
Measuring range:
0 … 150 ppm, 0 … 300 ppm,
0 … 5%
Zero point error:
< 10 ppm CO
Gauge reading balance:
< 3 ppm CO
Error of meas. value:
±3% of full scale value
Zero point drift:
< 2% (1 year)
Reproducibility:
< 2% (1 year)
Linearity:
< 2% of full scale value
Settling time t90:
< 60s
Transverse sensitivity:
< 2% by integrated filter
Output:
4 ... 20 mA on ALMEMO® connector
Supply voltage:
from the ALMEMO® measuring
instrument
Ambient temperature:
-10 to +40°C, sensor temperature
compensated in range
Air humidity:
0 to 90% non-condensing
Life span of the meas. cell:
approx. 2 years
Dimensions of meas. head:
Ø 80mm, height 80mm
Weight:
600g
Connecting cable:
1.5m, with ALMEMO® connector
