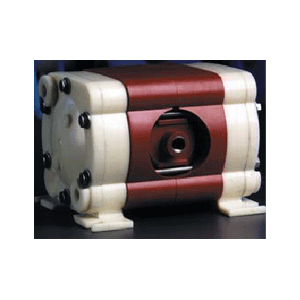

Durable, easy to maintain, CON-TROL-CURE® 1/4" Polypropylene/Teflon®
Double Diaphragm Pump handles tough,
heavy viscosity fluids. Polypropylene construction and Teflon® seals offer
resistance to solvents, UV inks and coatings. Pump features leak-free, non-stalling
operation, is fully self-priming up to 17 ft. vertical, and can be mounted
in any operating position. Can be run dry without damage.
SPECIFICATIONS:
● Wet Components:
Teflon®
● Capacity:
Adjustable 0-4.3 GPM (16.3 L/min)
● Operating Temperature:
150ºF (66ºC)
● Max. Air Pressure:
100 PSI (6.8 bar)
● Maximum Solids:
Up to 1/16"
● Air Inlet/Outlet:
1/4" NPSF Female
● Fluid Inlet/Discharge:
1/4" NPSF
1/4" Polypropylene/Teflon® Double Diaphragm Pump Drum Kit. This drum
pump kit includes the double diaphragm pump, 40" suction tube and bung
adaptor with 2" NPT straight threads.
1/4" Polypropylene/Teflon® Double Diaphragm Pump Repair Kit. This repair
kit contains 2 diaphragms, 4 gaskets, and O-rings.
IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility
between ink/coating chemistry and this pump's wet components.
Part Number
Description
Units
J004-103
POLY/TEFLON® DOUBLE DIAPHRAGM PUMP 1/4"
EACH
J004-103B
POLY/TEFLON® DD PUMP 1/4” DRUM KIT
EACH
J004-118
POLY/TEFLON® DD PUMP 1/4" REPAIR KIT
EACH
