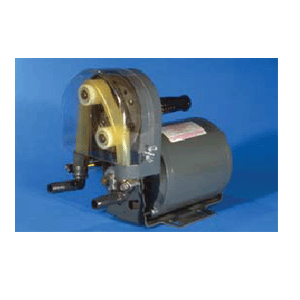

The CON-TROL-CURE¢ç Mini Peristaltic Pump is ideal for small volume applications of medium viscosity inks
MINI PERISTALTIC PUMP

The CON-TROL-CURE¢ç Mini Peristaltic Pump is ideal for
small volume applications of medium viscosity inks and coatings. It provides a sure method of pumping materials without contamination. 2 rollers on a ball bearing pulley rotate at approximately 700 rpm, providing 1400 pumping impulses/
minute. Materials are squeezed through the tubing at a flow rate of 2 GPM. The pump is selfpriming, with 1/2" I.D. hose connections. Lightweight and portable, weighing only 20 lbs.

FEATURES:
¡Ü Excellent chemical resistance
¡Ü Pumps a wide variety of chemicals
¡Ü Tubing and nylon fittings are the only parts of the unit in contact with materials being pumped
¡Ü Self-priming up to 15 ft

SPECIFICATIONS:
¡Ü Tubing Size: 1/2" I.D. (12.7 mm)
¡Ü Electric motor: 1/4 HP, 115V AC, 60 cycle,
drip proof, resilient mounted,
48 NEMA frame, close-coupled to pump
¡Ü Dimensions: 10"L x 5-1/2"W x 9-1/2"H
¡Ü Approximate Weight: 20 lbs
 ¡Ü Chemically resistant vinyl tubing conveys material being pumped
 ¡Ü Abrasion resistant nylon tube fittings for 1/2" I.D., external connections
 ¡Ü Equipped with handle for easy carrying

Flow and Head Capacities: Total Head PSI
Lbs/Square Inch Ft/Water GPM
0 0 2.2
5 12 2.1
10 23 2.0
15 35 1.9
20 46 1.7
25 58 1.4

Part Number Description Units
J004-002 MINI PERISTALTIC PUMP EACH
