상품 상세보기 : curing controls - M007-078 RADCHECK UV/EB DOSIMETER

By producing a linear, numerical benchmark of UV and EB system performance

RADCHECK UV/EB DOSIMETER

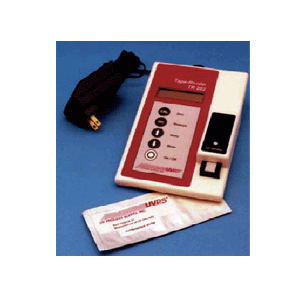

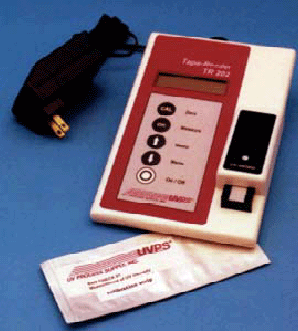

By producing a linear, numerical benchmark of UV and EB system performance, the CONTROL- CURE® Rad Check UV Measurement System provides repeatable evaluation results
over extended periods of use. Incorporating a UV/EB detection dosimeter and disposable UV and EB sensitive flexible test strips, the Rad Check system does not require outside
calibration to ensure consistency.

Designed for web offset, flexo, 3-D screen and other systems incorporating inaccessible UV and high energy EB curing systems, the Rad Check test strip is the only UV dosage
measurement device which can be passed completely through rollers, wrapped around cylindrical objects, or measure high EB dosages. Each test strip contains a UV/EB sensitive compound which is destroyed upon exposure to a UV light or EB energy source. After exposing the test strip, the density of the remaining compound can be measured by the Rad Check Dosimeter, which produces a numerical value reflecting energy received. This numerical value can be used to compare against jobs of similar characteristics for evaluating lamp degradation and system performance. 2 models available: the 800 for high intensity systems and the 300 for low intensity systems.

TEST STRIP SPECIFICATIONS:
● Dose Levels:	Test Strip 300: UV: 0-300 mJ/cm2; EB: 0-35 Mrad Test Strip 800: UV: 0-1400 mJ/cm2; EB: TBD
● Range:	320-380nm
● Durability:	Approximately 6 months
● Packaging:	100 strips/pack

Part Number	Description	Units
M007-078	RADCHECK 300 DOSIMETER	EACH
M007-079	RADCHECK 300 TEST STRIPS	/100
M007-081	RADCHECK 800 DOSIMETER	EACH
M007-082	RADCHECK 800 TEST STRIPS	/100
