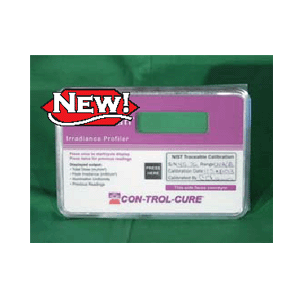

OMNISCANTM RADIOMETER
The revolutionary OmniScanTM is the first UV analyzer to combine dosage
measurements for ensuring product quality, with system diagnostics in one
simple, automated package. The exclusive Irradiance Profiler graphically
shows the absolute performance of each lamp subassembly in your system.
A stored reference plot allows you to compare, on-the-spot, the current
performance of the system with your standard operating parameters. There
is no need
to go to a computer station or to run complicated software. |

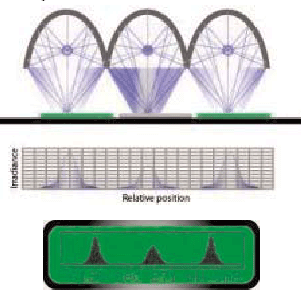

As the OmniScanTM passes through the oven,
it acquires the maximum irradiance at every point along the curing path.
It then shows this information as a graph of irradiance versus position
allowing the operator to instantly see the uniformity of the product illumination.
By recalling a stored baseline run, the OmniScanTM provides both quantitative
and qualitative analysis of the current run. This information is provided
automatically and immediately to the operator.
SPECIFICATIONS:
● Dose Range: 1mJ/cm2 to 20J/cm2
● Intensity Range: 1mW/cm2 to 20W/cm2
● Temperature Range: 10°C to 60°C
● Accuracy Typically better than 6%
● Information Displayed: Dose, Maximum irradiance,
Irradiance uniformity profile, Reference profile, Difference profile
● Spectral Ranges: 205nm-345nm or 250nm-400nm
● Dimensions: 0.5”D x 4.4”W x 6.3”L (12.7 mm
x 111 mm x 161 mm)
● Weight: 0.75 lbs/0.34 kg
| Part Number |
Description |
Units |
| M007-098 |
OMNISCAN™ |
EACH |
|
 |
|
| |
|
|
 | |
 |
|
 |
|
