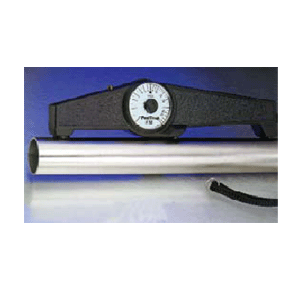

POSITEST COATING THICKNESS
GAUGE
Positest Coating Thickness Gauges are for non-destructive measurement of
non-magnetic UV and non-UV coatings (paint, enamel, plastic, galvanizing,
metalizing, plating, etc.) on steel products. Permanently calibrated device
features wear-resistant carbide probe for long life and continued accuracy.
Powered by permanent rare-earth cobalt magnet; no battery. |
FEATURES:
● Positive visual and audible indicators verify thickness
reading
● Precisely balanced, can be used in any position
● Go/No-Go presets for rapid measurement
● Conforms to ASTM and international standards
● Scale can be special ordered for microns
POSITEST FM SPECIFICATIONS:
● Applications: Paint, enamel, plastic coatings, hot
dip galvanizing, and hard chrome metalizing on steel
● Scale: 0-80 mils
● Tolerance: +/-0.2 mils up to 4 mils; +/-5% of reading
over 4 mils
POSITEST GM SPECIFICATIONS:
● Applications: Thin pain films, electroplating and
phosphating on steel
● Scale: 0-8 mils
● Tolerance: +/-0.4 mils up to 0.8 mils; +/-5% of
the reading over 0.8 mils
| Part Number |
Description |
Units |
| M006-025 |
POSITEST FM |
EACH |
| M006-026 |
POSITEST GM |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
