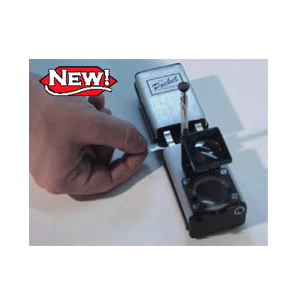

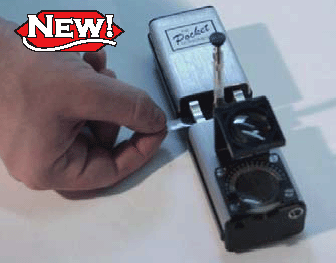

The Pocket Goniometer is a battery operated instrument that measures static contact angle
POCKET GONIOMETER

The Pocket Goniometer is a battery operated instrument that measures static contact angle and dynamic surface hysteresis for laboratory and field applications related to gluing, printing and surface-related problems. It is an ideal tool for checking contamination of a
specimen and the effects from cleaning and surface treatments.

By placing a liquid droplet on a specimen surface a contact angle is formed at the contact area. A droplet that "beads up" is non-wetting and a contact angle greater than 90¡Æ is displayed. When the droplet "wets out" across the surface, wetting is obtained and the contact angle is less than 90¡Æ .
A 6x magnified image of the droplet is displayed on the built-in screen. A reading is quickly made by rotating the protractor until the lines are parallel to the tangent at the contact point. An optional eye-piece provides 7x magnification of the test sample for very accurate readings.

FEATURES:
¡Ü Portable unit high quality lens system
¡Ü Battery operated long life light source (expected lifetime of 70,000 hours)
¡Ü Additional syringes are available separately
¡Ü Industry Standards: ASTM D724, TAPPI T458, SCAN P 18

Part Number Description Units
N001-014 POCKET GONIOMETER EACH
N001-016 EXTRA SYRINGE EACH
