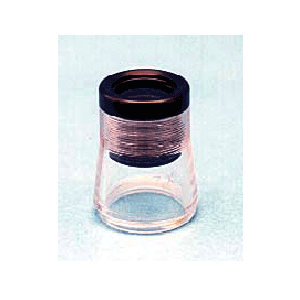

7X HASTINGS BENCH MAGNIFIER
AND SCALES
7 power adjustable focus lens provides a flat, distortion-free image. Transparent
body allows illumination. 1.5" focal length. .8" lens diameters.
Reticules sold separately.
AVAILABLE RETICULES:
General Purpose Scale. Optional scale for 7x Hastings (N017-070A) for measuring
radii from 1/16"-3/8", angles in single degrees of 90° and 105°,
and .1mm scales. Line widths: .001", .002", and .003"
7x Magnifier with Inch Scale. Optional scale for 7x Hastings (N017-070A)
features inch scale, 3/4" in .005 increments.
7x Magnifier with Metric Scale. Optional scale for 7x Hastings (N017-070A)
features metric scale, 20 mm in .1 mm increments. |
| Part Number |
Description |
Units |
| N017-070A |
HASTING BENCH MAGNIFIER 7X |
EACH |
| N017-071B |
GENERAL PURPOSE SCALE |
EACH |
| N017-072B |
INCH SCALE |
EACH |
| N017-073B |
METRIC SCALE |
EACH |
| |
|
|
 | |
 |
|
 |
|
