MK500D Áøµ¿ ºÐ¼®°è
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

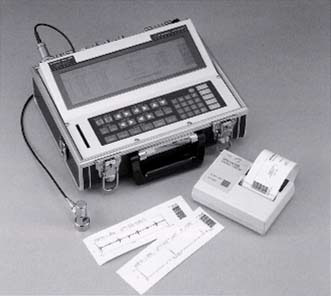

MK-500

Applications
The machine analyzer detects equipment abnormalities in the field and performs accurate diagnosis of bearings, gears and working parts.

Features
  • ¡¡
Automatic diagnostic functions:
Complete diagnostic logic, enabling diagnostic criteria to be adjusted according to equipment type and size.
Diagnostics for: working parts, bearings, gears, pumps and motors
  • ¡¡
Analytical functions: Vibration analysis
Sound analysis
Voltage analysis
AC signal display
Field balancing
Transient recording
3-dimensional FFT
  • ¡¡
Memory expansion: Stores up to 120 raw AC signals or up to 240 FFT spectra
Memory capacity can be doubled by the addition of a memory card
  • ¡¡
Easy to operate:
Compact and light-weight attache-style case.
Dialog and menu-style logical screen operation
  • ¡¡
High-level analytical functions: Probability density functions, probability distribution functions, kurtosis, phase spectra, differential and integral calculus and 1/3 octave analysis


Features
¡Ü








On-the-spot determination of machine condition using built-in Auto-Diagnostic Software.
The MK-500 conducts precise vibration analysis utilizing FFT's based on frequency analysis technology. With its auto-diagnostic software, the MK-500 can immediately diagnose machine condition, including causes and locations of troubled areas. The built-in field balancing software allows on-site balancing when used with the optional high speed, high accuracy LED sensor. The MK-500 also has all the standard vibrometer functions, including vibration wave patterns and vibration mode conversions through differential and integral calculations. A printed copy of available data can be obtained by using one of the optional external printers. The MK-500 combines the functions of a vibrometer, analyzer and diagnostic unit in one easy-to-use package.
¡Ü Increased memory capacity allow multiple functions. as well as the ability to fit a multitude of applications.
1. The 32K words of RAM enables the MK-500 to store up to 240 screen images. The stored data can be transferred to a personal computer through the standard built-in RS-232C interface. Additional screens can be stored into optional memory cards. Each card has the capacity to hold an additional 240 screens each, giving the MK-500 the ability to bring back virtually unlimited data from the field. Software is available which allows the user's personal computer to be used for filing and secondary processing of stored data.
2. In addition to the vibration input, the MK-500 has the ability to take audio and voltage signal data. The unit is equipped with a three-dimensional display to show transient memory of 32k words or spectrum changes relative to time. The MK-500 can be used as a multi-purpose analyzer including transient analysis and machine resonance measurement functions.
¡Ü Incomparable ease of handling is accomplished by the reduced number of keys and the use of an interactive mode.
Using the interactive mode, the next key to be pushed is indicated on the LCD screen, allowing the unit to be operated by anyone with only a minimum of training. The operator isn't required to remember complicated procedures used on conventional analyzers.
¡Ü Extremely compact size and battery power allow the MK-500 to be used virtually anywhere.
The entire unit weighs only 5.0kg(11.02lbs) and can be carried anywhere for on-the-spot diagnostics. In addition to internal battery power, the MK-500 can utilize on-site AC or DC external power sources if available. Screens remain stored in memory even after external power is removed.
