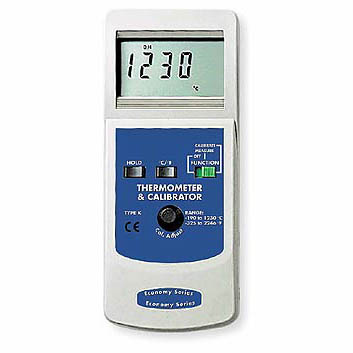

The ML29123 Thermometer/Thermocouple Calibrator provides the functions of both a Type K thermometer and Type K thermocouple calibrator. The ML29123 features a wide -199 to +1230 °C (-325 to +2246 °F) measurement and calibration range.
Features
Two-in-one meter: Type K thermometer & Type K thermocouple
Wide range: -199 to +1230 °C (-325 to +2246 °F)
Built-in, high precision, temperature linearity compensation circuit
°C & °F select & data hold functions for temperature measurement
°C & °F button selection for temperature calibration
Temperature measuring input to meet any standard Type K (NiCr-NiAl) probe
Fitted with standard Type K mini-plug socket
Large LCD display
Operates on 006P DC 9V battery
RS232 PC serial computer interface
SPECIFICATIONS
(23 °C ±5 °C; specifications are tested under the environment RF Field Strength < 3V/M and frequency <30 MHz)
Display
LCD display with 13 mm (0.5) digit size
Measure/Calibration Range
-199 to +1230 °C /-325 to +2246 °F
Thermometer Sensor Type Input Impedance
Thermocouple K (NiCr-NiAl) 10 MegOhm
Sampling Time
Approx. 0.4 seconds
Data Output
RS232 PC serial computer interface
Overall Accuracy
±(1 % ± 2 °C) / ±(1 % + 5 °F) max.
Operating Temperature
0 to 50 °C (32 to 122 °F)
Operating Humidity
Less than 80% RH
Power Supply
9V DC battery
Weight
280 g /0.62 LB (with battery)
Dimensions
185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inch)
Notes: 1. The accuracy specification of the thermometer applies only to the instrument itself and does not include T/C errors.
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
ML29123
LTC-920
Thermocouple Calibrator
Yes
438,804
ML29114
LCA-05A
OPTIONAL Carrying Case FOR Thermometer/Thermocouple Calibrator
Yes
33,048
ML29121
LSW-U101
OPTIONAL Windows Software FOR Thermometer/Thermocouple Calibrator
Yes
86,292
ML29122
LUPCB01
OPTIONAL RS232 Cable FOR Thermometer/Thermocouple Calibrator
Yes
40,392
ML29115
TP-K01
OPTIONAL Bead Probe FOR Thermometer/Thermocouple Calibrator
Yes
16,524
ML29116
TP-K02
OPTIONAL Immersion Probe FOR Thermometer/Thermocouple Calibrator
Yes
73,440
ML29117
TP-K03
OPTIONAL Surface Probe FOR Thermometer/Thermocouple Calibrator
Yes
104,652
ML29118
TP-K04
OPTIONAL Piercing Probe FOR Thermometer/Thermocouple Calibrator
Yes
104,652
ML29119
TP-K05
OPTIONAL Surface Probe FOR Thermometer/Thermocouple Calibrator
Yes
152,388
ML29120
TP-K06
OPTIONAL Air and Gas Probe FOR Thermometer/Thermocouple Calibrator
Yes
111,996
