Capacitive humidity sensor with or without temperature sensor, particularly suitable for conduit mounting.
MT8xx6KxRx Conduit-Mt.
Sensor Type
● Capacitive humidity
sensor with or without temperature
sensor, particularly suitable for conduit mounting.
● Suitable for
stationary measurements in climatology.
● Designed for
power supply with 15 … 24VDC.
Accessories:
ZB9600KV
Movable aluminium screw connection With
Teflon sealing ring
ZB9600F
Connecting flange for screw connection, Hole circle
38mm Ø
Technical Data:
Operative range
: Sensor :
Head :
-30 to +70 °C, 5 to 98 % r.H.
0 to +60 °C, 0 to 90 % r.H.
(non-condensing)
Temperature Measuring Circuit
Sensor:
PT100 or NTC type N
Accuracy:
Pt100:
IEC 751, Class B
NTC:
-20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C

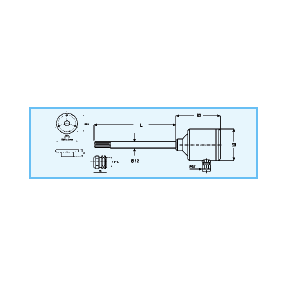

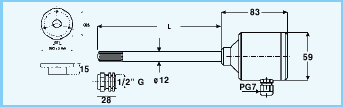

Mechanical Construction
Sensor tube:
aluminium, 12mm
Protective cap:
SK7, metal-mesh filter
Connecting head:
made of black PVC
Types:
Transmitters for conduit mounting,
connection via screw terminals
Temperature Sensor
Signal Output (corresponds to 0…100 %
r.H./-30…+70°C)
Length
MT8616K1R2
without
0 … 10V
L = 122mm
MT8616K2R2
without
0 … 10V
L = 262mm
MT8616K3R2
without
0 … 10V
L = 522mm
MT8616K1R5
without
0 … 1V
L = 122mm
MT8616K2R5
without
0 … 1V
L = 262mm
MT8616K3R5
without
0 … 1V
L = 522mm
MT8716K1R3
without
0 … 20mA
L = 122mm
MT8716K2R3
without
0 … 20mA
L = 262mm
MT8716K3R3
without
0 … 20mA
L = 522mm
MT8716K1R4
without
4 … 20mA
L = 122mm
MT8716K2R4
without
4 … 20mA
L = 262mm
MT8716K3R4
without
4 … 20mA
L = 522mm
MT8636K1R2
Pt100
2 x 0 … 10V
L = 122mm
MT8636K2R2
Pt100
2 x 0 … 10V
L = 262mm
MT8636K3R2
Pt100
2 x 0 … 10V
L = 522mm
MT8636K1R5
Pt100
2 x 0 … 1V
L = 122mm
MT8636K2R5
Pt100
2 x 0 … 1V
L = 262mm
MT8636K3R5
Pt100
2 x 0 … 1V
L = 522mm
MT8736K1R3
Pt100
2 x 0 … 20mA
L = 122mm
MT8736K2R3
Pt100
2 x 0 … 20mA
L = 262mm
MT8736K3R3
Pt100
2 x 0 … 20mA
L = 522mm
MT8736K1R4
Pt100
2 x 4 … 20mA
L = 122mm
MT8736K2R4
Pt100
2 x 4 … 20mA
L = 262mm
MT8736K3R4
Pt100
2 x 4 … 20mA
L = 522mm
FHA646-1x/-KxC/-2x/-7/-5x/-WG Protective caps for capacitive humidity
sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm
Types :
Type
Designation
Pore-
size
Maximum
temperature
Typical Application
SK7
ZB9600SK7
Metal-mesh filter in
PC-housing
100 μm
120°C
Universal, for medium,
contamination, also high humidity
SK6
ZB9600SK6
PTFE-Sinterfilter
50 μm
180°C
High chemical resistance
SK8
ZB9600SK8
Stainless steel
sinter filter
10 μm
180°C
For severe mechanical stress,
heavy contamination,
strong air flow
Brackets for wall mounting
Movable
screw connection
ZB9600W
Brackets for wall
mounting, distance from
wall approx. 40 mm
ZB9600KV
Movable aluminum screw connection
with Teflon sealing ring
ZB9600F
Connecting flange for screw connection,
hole circle 38 mm Ø
