상품 상세보기 : 습도 쎈서 - FHA6465x Conduit-Mt. Sensor Type

Capacitive humidity sensor with or without temperature sensor, particularly suitable for conduit mounting.

FHA6465x Conduit-Mt. Sensor Type

● Capacitive humidity sensor with or without temperature
sensor, particularly suitable for conduit mounting.
● Suitable for stationary measurements in climatology.
● Designed for power supply with 15 … 24VDC.

Accessories:

ZB9600KV	Movable aluminium screw connection With Teflon sealing ring
ZB9600F	Connecting flange for screw connection, Hole circle 38mm Ø

Technical Data:
Operative range : Sensor : Head :	-30 to +70 °C, 5 to 98 % r.H. 0 to +60 °C, 0 to 90 % r.H. (non-condensing)
Humidity Measuring Circuit
Measuring range:	0 … 100 % r.H.
Sensor:	capacitive
Accuracy:	± 2% r.H. at nominal temperature
Reproducibility:	< 1% r.H. at nominal temperature
Nominal temperature:	25°C ±3°C
Response time T90:	approx. 10s (without filter) 5m/s
Connecting head:	made of black PVC

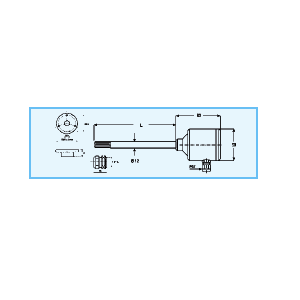

Mechanical Construction
Sensor tube:	aluminium, 12mm Ø
Protective cap:	SK7, metal-mesh filter
Connecting head:	made of black PVC

Types:
Humidity / temperature sensors for conduit mounting including ALMEMO® connecting cable, 2 m
Supply voltage via ALMEMO® device
	Temperature Sensor	Signal Output (corresponds to 0…100 % r.H./-30…+70°C)	Length
FHA64651	NTC	for ALMEMO® devices	L = 122mm
FHA64652	NTC	for ALMEMO® devices	L = 262mm
FHA64653	NTC	for ALMEMO® devices	L = 522mm
ZB9060K	For longer ALMEMO® cable (up to 30m), please specify length.

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type

Dimensions : length approx. 33 mm, diameter 12 mm

Types :
	Type	Designation	Pore- size	Maximum temperature	Typical Application
SK7	ZB9600SK7	Metal-mesh filter in PC-housing	100 μm	120°C	Universal, for medium, contamination, also high humidity
SK6	ZB9600SK6	PTFE-Sinterfilter	50 μm	180°C	High chemical resistance
SK8	ZB9600SK8	Stainless steel sinter filter	10 μm	180°C	For severe mechanical stress, heavy contamination, strong air flow

Brackets for wall mounting		Movable screw connection
ZB9600W	Brackets for wall mounting, distance from wall approx. 40 mm	ZB9600KV	Movable aluminum screw connection with Teflon sealing ring
		ZB9600F	Connecting flange for screw connection, hole circle 38 mm Ø
