VERSAPROBETM RADIOMETER

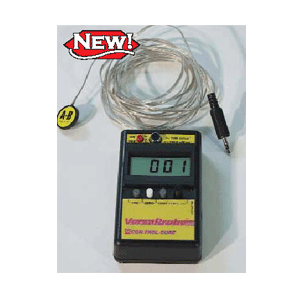

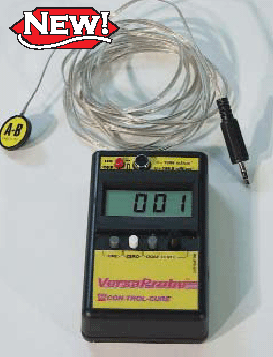

The CON-TROL-CURE® VersaProbe™ handheld radiometer/dosimeter
is designed to monitor UV light sources used in a wide range of UV curing
applications. The VersaProbe™ captures both Total Dose and Peak Irradiance.
VersaProbe™ offers broad-band UV-A+B measurements (comes standard with unit)
and narrow-band UV-A and UV-B (additional probes required). The VersaProbe™
also comes standard with a built in UV-A+B sensor for direct work surface
measurements. When the VersaProbe™ is used as a broad-band (A+B) radiometer,
it sees UV energy from 280nm-400nm, critical to many curing applications.
When used as a narrow-band radiometer, the VersaProbe™ sees only the lamp
energy output in the UV-A or UV-B range. Calibrated using a NIST traceable
standard.
SPECIFICATIONS:
● Response Range 280-400nm (UV-A+B)
● Conv. Rate 2.0 readings/Second
● Display 3.5 digit LCD (digit size .5" high)
● Size 4.4"L x 2.6"W x 1.1"D (112 mm
x 66 mm x 30 mm)
● Weight 6.0 oz (170 g) incl. Battery
● Power Source 9V DC Battery or optional adaptor
Radiometer Mode: (UV-A+B)
● Irradiance Range 0-199.0mW/cm2
● Resolution 0.1mW/cm2
Dosimeter Mode: (UV-A+B)
● Dose Range 0-1999mJ/cm2
● Resolution 1mJ/cm2
● Max Measurement Time 200 s |
| Part Number |
Description |
Units |
| M007-092 |
VERSAPROBETM |
EACH |
| M007-093 |
VERSAPROBE A PROBE™ |
EACH |
| M007-094 |
VERSAPROBE B PROBE™ |
EACH |
| |
|
|
 | |
 |
|
 |
|
