| The ClearView™ uses an extremely stable solid-state photodiode detector |
 |

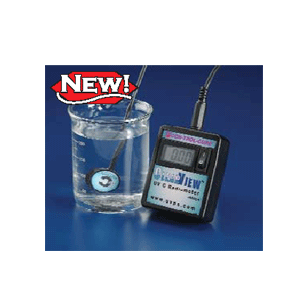

CLEARVIEWTM UV C RADIOMETER
The ClearView™ UV-C Radiometer is designed to be a simple, inexpensive measurement
device which delivers precise, instantaneous irradiance readings. Engineered
to be extremely portable and versatile, the ClearView™ is optimal for assuring
germicidal UV-C (220-280nm) lamp performance both in and out of water. The
ClearView™ uses an extremely stable solid-state photodiode detector with
a low temperature coefficient to isolate the UV-C radiation. It does not
allow any out-of-band signal to contaminate the reading. The UV-C probe
comes standard with a 10 ft cable and is hermetically enclosed for submersion
to 6 ft. Calibrated using a NIST traceable standard. |
SPECIFICATIONS:
● Response Range 220-280nm (UV-C)
● Irradiance Range 0 - 20 mW/cm2
● Resolution 10μW/cm2
● Conv. Rate 2.5 readings/second
● Oper.Temp 60°F to 95°F (15°C - 35° C)
● Dimensions - Radiometer 3"L x 2.5"W x
1.05"D (76 mm x 64 mm x 27 mm)
● Dimensions - Remote Probe 0.87"D x 0.4"H
(22 mm x 10 mm) head
● Weight - Radiometer 3.7 oz (105 g) including battery,
remote probe 1.3 oz (37 g)
● Power Source 9V battery (not included in package)
| Part Number |
Description |
Units |
| M007-095 |
CLEARVIEWTM UV C RADIOMETER |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
